Model:LNFSHELF04

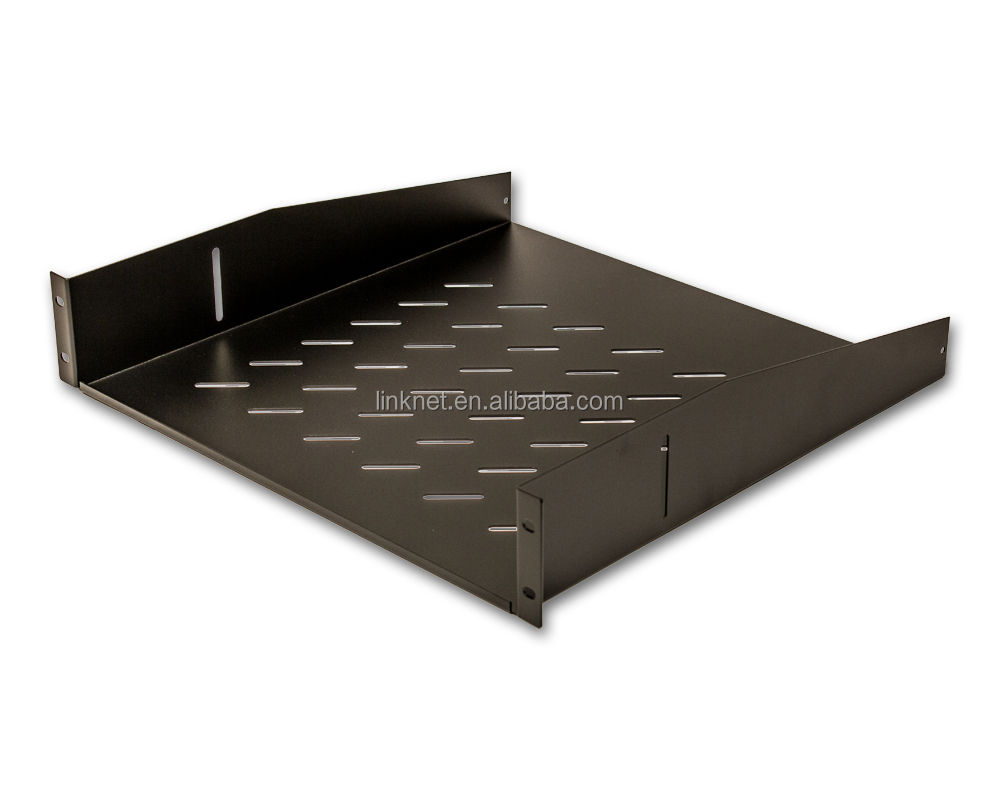

Name:19 installation fixed shelf
Description:



Fixed shelf for cabinets in depth 600/800/1000/1200mm .

The sizes for different cabinets depth are 350mm, 550mm, 650mm.

The width is 481mm .

The installation way is 19'' installation.

Vented holes for hot airflow.

All kinds of shelf tailor-made.



---------------------------------------------------------------------------

Width : 19" installation

Depth : customized

Height: 1U /2U/3U optinal

45 kg bearing capacity,usually used for wall cabinet.

Surface Finish: Degreasing, pickling, phosphoric, power coating

Material: SPCC cold rolled steel or EG steel.

Color: RAL9005(black) ;RAL7035(grey)

Thickness:1.2-1.5MM



Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7; GB/T3047.2-

92 standard; compatible with ETSI standard.



More choices included:



Dimension description like below :

Name Dimension Description
LNFSHELF02 D-350 for 600mm depth cabinet, vented, 19'' installation.
LNFSHELF02 D-550 for 800mm depth cabinet, vented, 19'' installation.
